Features
The high-end machine adopts precise ball screw linear guide track.
High column matches electric lift to adjust the gap of guide wheel and large swing taper machine matches electrode wire wire expansion mechanism.
We also produce semi-closed environmental-protection machine.
The diameter range of molybdenum wire is 0.12mm-Φ0.18mm (moly wire diameter over than Φ0.18mm should be customized).
The maximum working speed is over 100mm ²/min and the best surface roughness is less than Ra2.5 μm.
Specifications

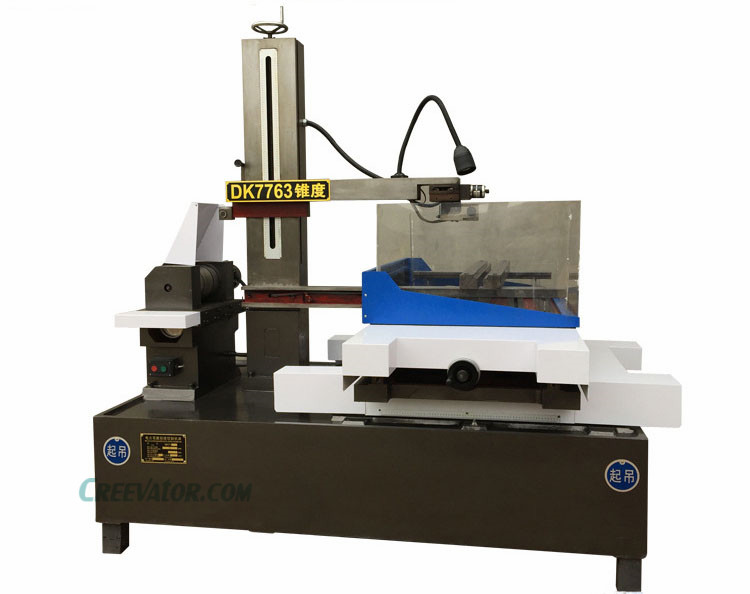

Models | Unit | DK7763 | DK7780 | DK77100 | DK77120 |
Work Table Travel | mm | 800*630 | 1000*800 | 1200*1000 | 1500*1200 |
Work Table Dimensions | mm | 1160*780 | 1500*1000 | 1760*1200 | 1960*1500 |
Maximun Load Capacity | KG | 1200 | 1600 | 2000 | 2500 |
Machine Weight | KG | 3200 | 6000 | 6500 | 7500 |
Maximum Cutting Taper | mm | ±3°-±30°80mm | ±3°-±30°80mm | ±3°-±30°80mm | ±3°-±30°80mm |
Effciency | mm² | 200mm²/min | 200mm²/min | 200mm²/min | 200mm²/min |
Accuracy | Um | 10 | 10 | 10 | 10 |
Machine Dimensions | mm | 2100*1500*2250 | 2500*2100*2300 | 3300*3250*2500 | 3300*3250*2500 |
Maximum Cutting Thickness | mm | 700 | 700 | 800 | 1000 |
Accessories
Standard Accessories | Optional Accessories |
CNC Electric Control Cabinet | Guide Wheel Assembly |
PC, Monitor, Keyboard, Mouse, HL Cards | Conductive Block |
Water Tank | Retaining Wire Rods |
Water Pump | Conductive Block |
Inlet and Outlet Water Pipes | Timing Belt |
Wire of the Control Cabinet with Plug | |
Shake Handle | |
Screw | |
Factory Data | |
Emulsion Cream | |
Tight Wire | |
Screw | |
Nut | |
Fixture | |
Waterproof Cover |
