Features

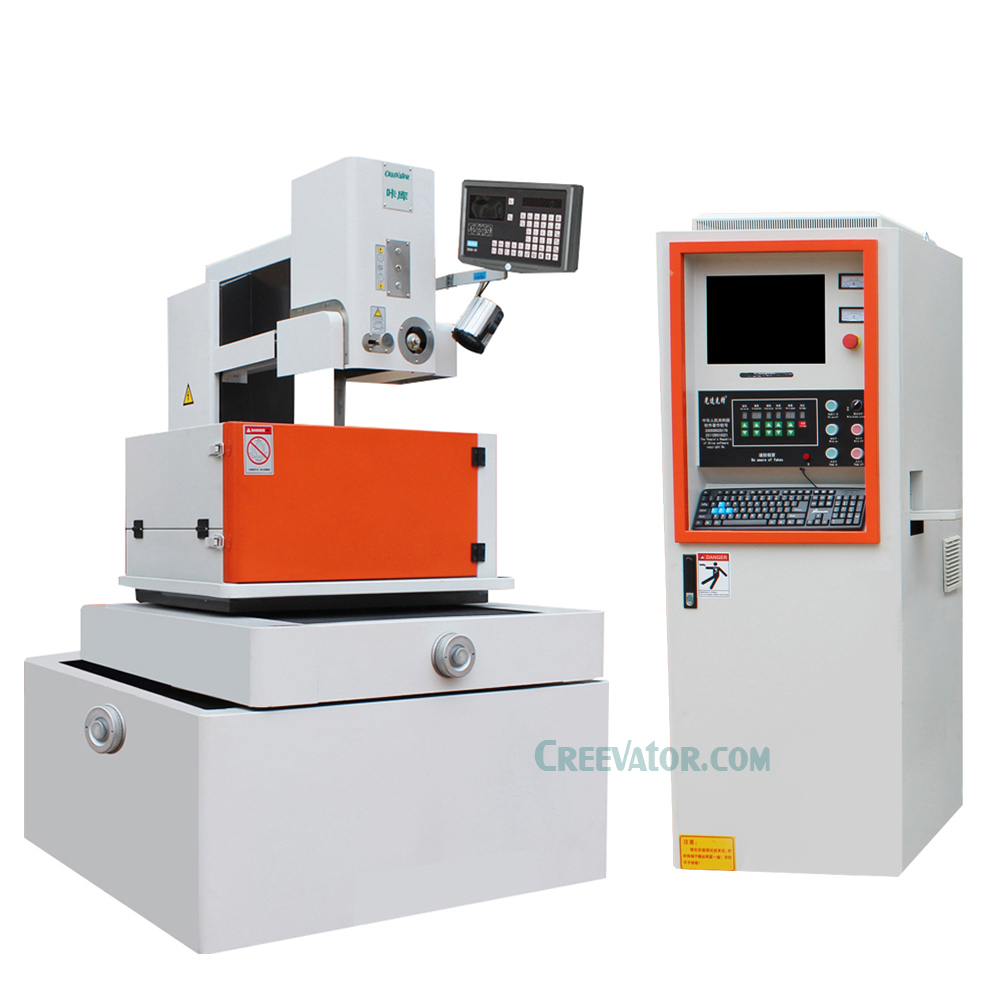

DK77 series Medium speed wire cutting EDM machine features:
1. Molybdenum wire and the workpiece surface must be processed to maintain a certain gap between the width of the gap by the working voltage, processing capacity and other processing conditions may be.
2. Demanding high insulation is to facilitate the generation of pulsed spark discharge, the liquid medium also exclude the gap between the galvanic products and the role of the cooling electrode. Molybdenum wire and the workpiece surface to be processed to maintain a certain gap between, if the gap is too large, the voltage between the electrodes can not break the electrode medium, you can not produce spark discharge; if the gap is too small, it is easy to form a short circuit connection, it can not generate electricity Spark discharge.
3. Must adopt the pulse power, namely the spark discharge must be the pulse, intermittent, ti in Fig. 1 is the pulse width, to is the pulse interval, tp is the pulse period. In the pulse interval, the gap medium ionization, so that the next pulse can be between the two poles breakdown discharge.
Specifications
Type | DK7725M | DK7732M | DK7740M | DK7750M |
Worktable size | 520×336(mm) | 576×386(mm) | 720×460(mm) | 820×556(mm) |
Table travel | 320×250(mm) | 400×320(mm) | 500×400(mm) | 630×500(mm) |
Max.workpiece thickness | 400(330) (mm) | 400(330) (mm) | 400(330) (mm) | 500(400) (mm) |
Total weight | 1100(kg) | 1300(kg) | 1700(kg) | 2500(kg) |
Overall dimensions | 1.4×1.06×1.5(m) | 1.52×1.14×1.5(m) | 1.68×1.39×1.54(m) | 1.87×1.59×1.66(m) |
Wire traveling speed | 11.5(m/s) | |||
Wire diameter | 0.13-0.18(mm) | |||
Max.cutting speed | >=160(mm²/min) | |||
Taper | 6º-30º/80(º/mm) | |||
Power input | 3N-50Hz 380V(Monophase 50Hz 220V) | |||
Total power | ≤1.2(kw) | Surface roughness μm(<=Ra1.2) | Precision <=0.01mm |
Accessories
| Standard Accessories | Optional Accessories |
| Stepper Motor | Wire Tightener |
| Precision Steel Guide Taizhou | Repair Tool Funtion |
| Main Bearing NSK | High Pressure Water Tank |
| Major Electrical Appliances Original Germany Siemens | Aluminum Cutting Device |
| Control System Software | Grating |
Packing List
Item | Quantity |
DK77-series | 1 Set |
CNC Control Cabinet (Desktop/ Vertical control Cabinet) | 1 Set |
PC, Monitor, Keyboard, Mouse, HL Card | 1 Set |
Water Tank | 1 Set |
Water Pump | 1 Set |
Access to Water Pipes | 3 |
Plug the Control Panel with the Key | 1 |
Shake Handle | 1 |
Screw | 2 |
Factory Data | 1 Part |
Emulsion Cream | 1 Set |
Tight Wire | 1 |
Foot Adjustment Screw | 6 |
Adjusting Nut and Foot Washer | 6 |
Fixture | 1 Set |
Waterproof Cover | 1 Set |
