Features

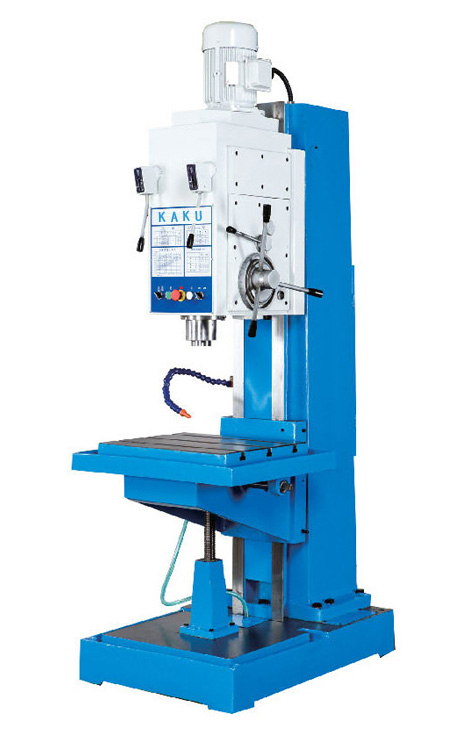

1. This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc.
2. This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Specifications
Model | Z5140A | Z5150A | Z5163A | Z5180B |
Max Drilling Diameter | 40MM | 50MM | 63MM | 80MM |
Max Spindle Feeding Strength | 16KN | 16KN | 30KN | 30KN |
Spindle Motor Power | 3KW | 3KW | 5.5KW | 5.5KW |
Max Spindle Torque | 350Nm | 350Nm | 800Nm | 800Nm |
Spindle Feed Step | 12Step | 12Step | 9Step | 9Step |
Spindle Speed Range | 31.5-1400 r.p.m | 31.5-1400 r.p.m | 40-570 r.p.m | 40-570 r.p.m |
Spindle Taper(Morse) | 4 | 5 | 5 | 6 |
Spindle Travel | 250MM | 250MM | 250MM | 250MM |
Spindle Box Travel | 200MM | 200MM | 250MM | 250MM |
Distance Between Spindle Axis to Surface of Column | 335MM | 335MM | 375MM | 375MM |
Distance Between Spindle End and Table Surface | 750MM | 750MM | 50-850MM | 50-850MM |
Working Table Travel | 300MM (manual) | 300MM (manual) | 300MM | 300MM |
Working Table Size | 560*480MM | 560*480MM | 550*650MM | 550*650MM |
T-Slot (Numbers of Slot*Width) | 3x18 | 3x18 | ||
Net Weight | 1250KG | 1250KG | 2500KG | 2500KG |
Overall Size | 1090x905x2530 mm | 1090x905x2530 mm | 1300x980x2790 mm | 1470x986x2797 mm |
Accessories
Standard Accessories | Standard Accessories |
Drill Chuck | Oblique Iron |
Adjustable Sleeve | Shaking |
Puller | 160 Flat Pliers |
