Features

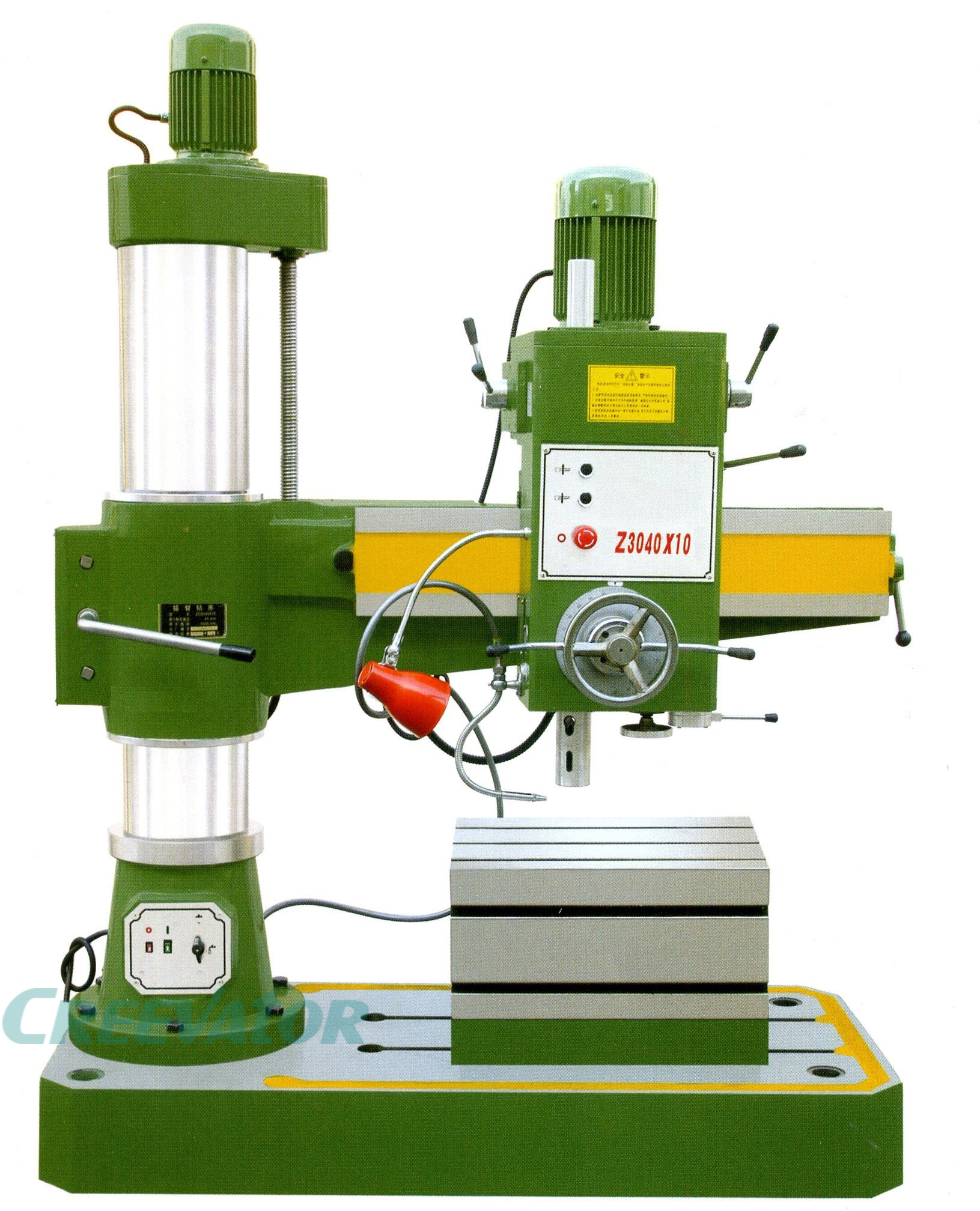

Z30 Series Radial Drilling Machine The products can be widely used in machining, drilling, reaming, reaming, counterboring and tapping.
1. Mechanical driven
2. Mechanical clamping
3. Mechanical changing speed
4. Up and down by power
5. Auto feeding
Specifications
Model | Unit | Z3032×10 | Z3040×16/1 | Z3050×16/1 | Z3063×20/1 | Z3080×25 | Z30100×31 |
Max Drilling Diameter | mm | 32 | 40 | 50 | 63 | 80 | 80(Steel)/100(Casting) |
x | mm | 1000 | 1600 | 1600 | 2000 | 2500 | 3150 |
Min | mm | 300 | 350 | 350 | 450 | 500 | 570 |
Max | mm | 1000 | 1250 | 1220 | 1600 | 2000 | 2500 |
Min | mm | 260 | 350 | 320 | 400 | 550 | 750 |
Spindle Travel | mm | 200 | 315 | 315 | 400 | 450 | 500 |
Spindle Taper Hole (Mohs) | 4 | 4# | 5# | 5# | 6# | 6# | |
Spindle Speed Range | r/min | 25-1000 | 25-2000 | 25-2000 | 25-1600 | 16-1250 | 8-1000 |
Number of Spindle Speeds | step | 6 | 16 | 16 | 16 | 16 | 22 |
Spindle Feed Range | mm/r | 0.04-3.2 | 0.04-3.20 | 0.04-3.20 | 0.04-3.20 | 0.04-3.20 | 0.06-3.2 |
Spindle Feed Series | step | 6 | 16 | 16 | 16 | 16 | 16 |
Table Size | mm | 500×630 | 500×630 | 630×800 | 800×1000 | 800×1250 | |
Spindle Head Distance | mm | 1000 | 1250 | 1250 | 1550 | 2000 | 2580 |
Main Motor Power | kW | 2.2 | 3 | 4 | 5.5 | 7.5 | 15 |
Machine Weight | kg | 1200 | 3500 | 3500 | 7000 | 11000 | 20000 |
Overall Dimensions (L × W × H) | mm | 1235×600×1270 | 2500×1070×2840 | 2500×1070×2840 | 3080×1250×3291 | 3730×1400×4025 | 4780×1630×4600 |
Accessories
Standard Accessories | Optional Accessories |
Rsie Block | Quick Instead Chuck |
Taper Sleeve | Tapping Chuck |
Tool Releasing Wrench | Angle Work Table |
Drift | DRO |
Eyelet Bolts | |
Box Work Table |
