Features

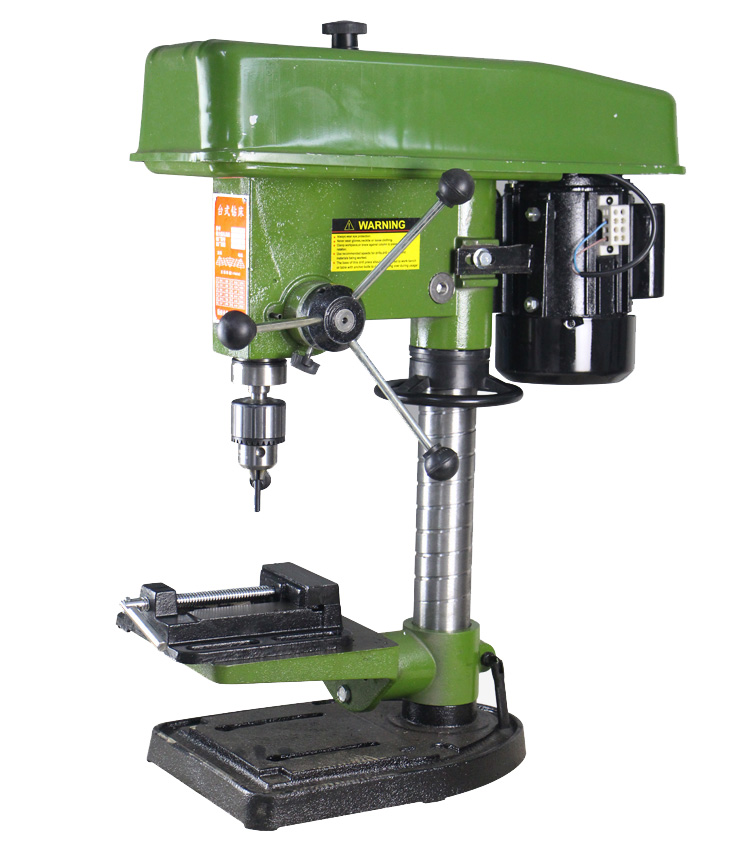

Professional desktop drilling machine, professional, high quality and convenient.
Specifications
Item | Z516 |
Drilling Diameter | 3-16mm |
Column Diameter | 62mm |
Spindle Maximum Stroke | 80mm |
Spindle Center Line to Column Surface Distance | 200mm |
Spindle End to The Table of The Maximum Distance | 280mm |
Spindle End to The Base of The Maximum Distance | 430mm |
Spindle Taper | B16 |
Spindle Speed Range | 250-3200rpm |
Spindle Speed Series | 4 files |
Countertop Size | 196*196mm |
Base Size | 360*190mm |
The Maximum Effective Height | 780mm |
Motor | 750w |
Gross Weight | 50kg |
