Features
1. Vertical force controlled through hydraulic cylinder.
2. Strong structure for big capacity cutting.
Specifications
Model | BS-1018B | |
Max. Capacity | Circular @90o | 254mm (10”) |
Rectangular @ 90o | 127x457mm (5”x18”) | |
Circular @ 45o | 150mm (6”) | |
Rectangular @ 45o | 150x190mm(6”x7.5”) | |
Blade Speed | @60HZ | 35,60,88,115 MPM |
114,196,288,377 FPM | ||
@50HZ | 26,50,73,95 MPM | |
95,164,288,377 FPM | ||
Blade Size | 27x0.9x3276mm/ 1.06”x0.036”x122” | |
Motor | 1.47KW(2HP) 50/60HZ | |
Drive | V-belt | |
Packing Size | 1830x830x1150mm | |
NW/GW | 310/385KG | |

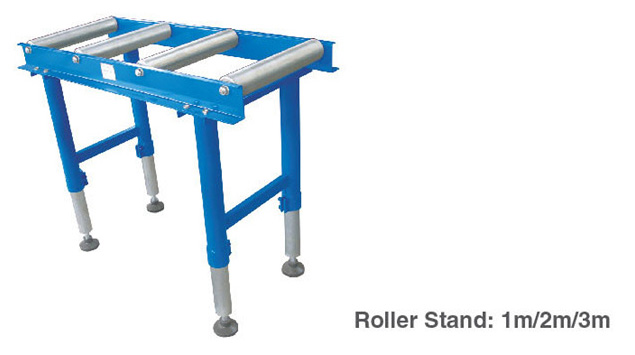

Accessories
